Spinner Platform: Power cable repair guide.

Here you can see how to change platform power connection cable.

This may take about 10-15 minutes.


What you need:

  1. Power extension cable.
  2. Wire cutters.
  3. Flat screwdriver.
  4. Zip ties.
  5. Measuring tool.

Prepare new cable:










See photos below (from left to right):


  1. Check what we need to have.

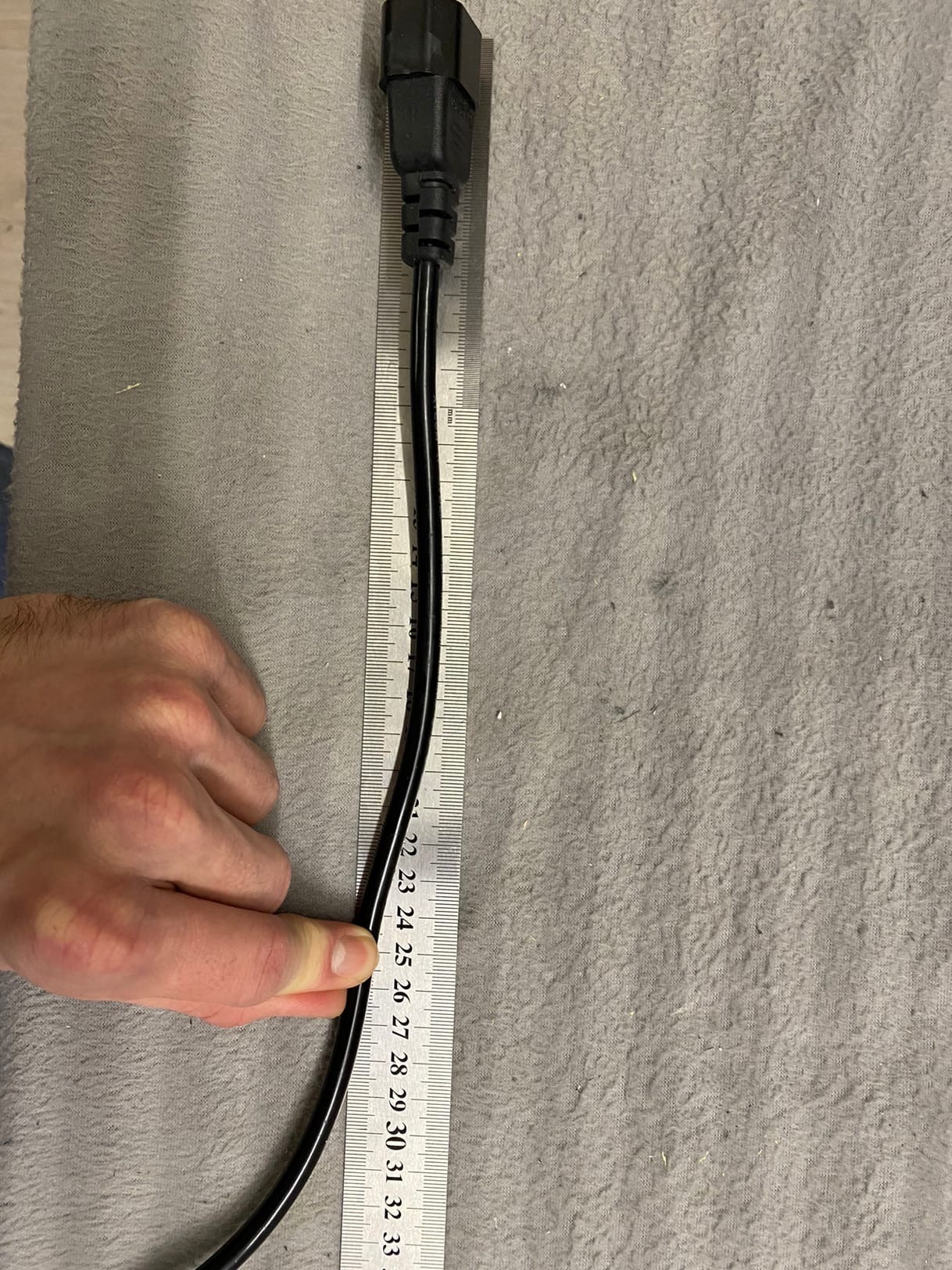

  2. Measure out 25cm from the end of the cable.
  3. Cut it!

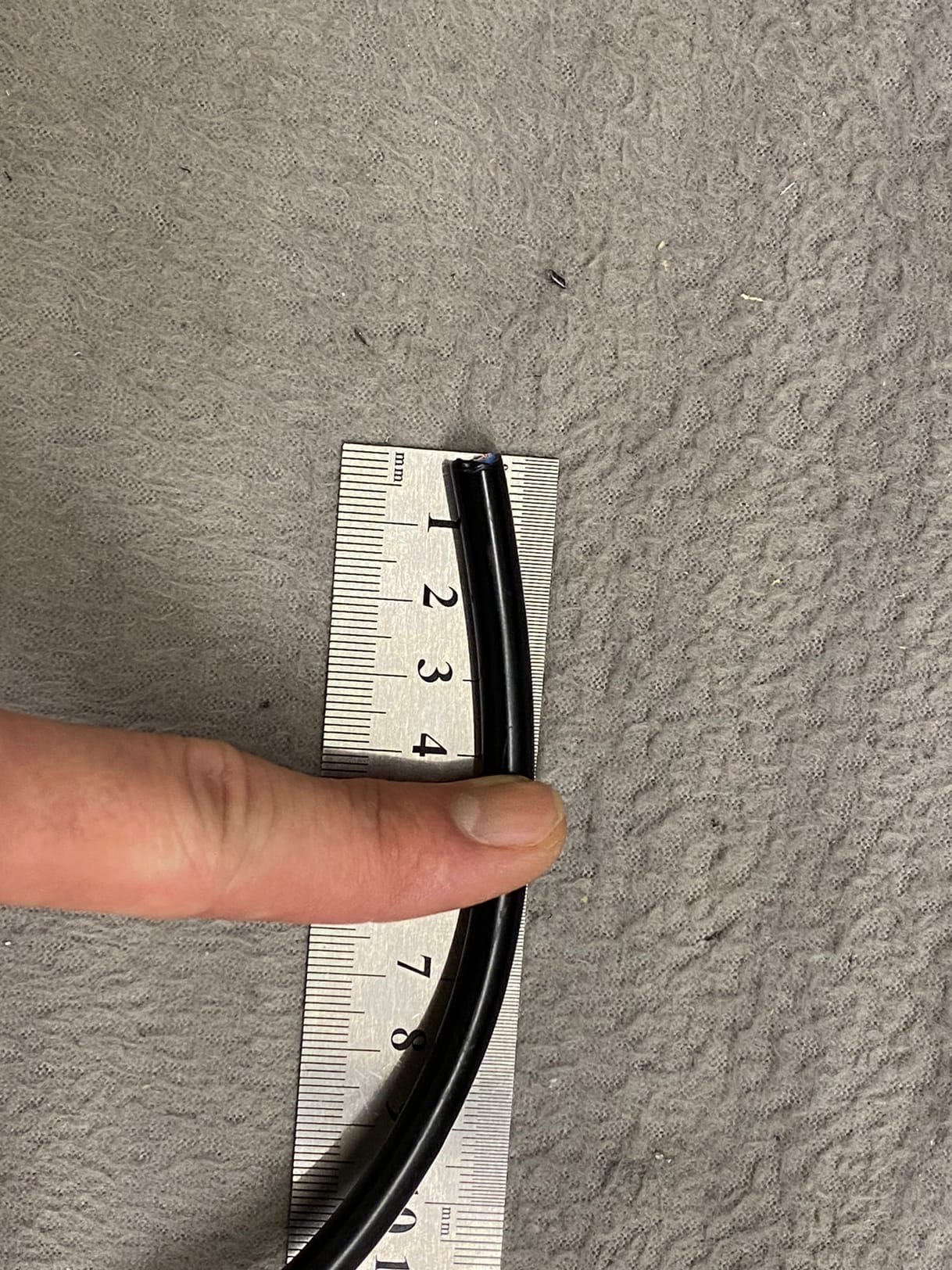

  4. Measure ot 4cm from cuted end of the cable.
  5. Strip the outer insulation.
  6. Strip the insulation on each 3 cables (about 10mm).

Now we need to remove old power cable and install new one:












See photos below (from left to right):


  1. Remove zip ties which holding old cable with wire cutters.
  2. Unscrew the old cable from AC power adapter.
  3. Remove the old cable.
  4. Install new cable to AC adapter and screw it. Check cables colors (unfortnally you may have another colors, so you need to find which cable is "Ground", which is "Line" and which is "Neutral").
  5. Try to power up platform. If everytnig fine - you will see green light turns on.
  6. Next - install new zip ties to fix our new cable.
  7. Cut off zip tie tails.
  8. Power up platform again, and check how it works.

That's all. Thank you!
