Triangle Light for 360 Platforms, Cameras and Phones
A compact lighting module for Spinner 360 that illuminates the guest while keeping the camera or phone mounted on the rotating arm.
On requestconfiguration confirmed before ordering
Capabilities
Move the light and camera as one system.
Triangle Light stays on the Spinner 360 arm and follows the selected capture mode.
Two lighting modes
Continuous light or light that activates while the platform rotates.
GoPro mounts
Current contents list vertical and horizontal adapters plus a GoPro screw.
Two phone adapters
Mount a phone through the confirmed adapters and screw interface.
External power
The current version requires USB-C PD at 15 V / 3 A.
The result
Keep the subject lit throughout the camera path.
Continuous mode keeps the scene ready, while rotation-triggered mode switches the light on with platform movement.
- Continuous lightIlluminate the scene before, during and after rotation.
- Rotation-triggered lightActivate the module during the moving part of the workflow.
- Camera or phoneSelect the mount for the device in the current configuration.
Construction
The triangular frame combines light and the device mounting point.
Mount the module on the Spinner 360 arm, supply external power and secure the selected device with a compatible adapter.
- GoProCurrent contents list vertical and horizontal adapters and a GoPro screw.
- PhoneTwo phone adapters and a screw adapter are listed in the current set.
- Type-C PDThe version produced since August 2023 uses 15 V / 3 A.
- One controlHold to power on and press briefly to change the mode.
Workflow
Confirm the revision, power source and mode before mounting.
Old and current versions use different power contracts, so their instructions must remain separate.
Identify the version
The current version follows the 15 V / 3 A contract.
Connect power
Use a Type-C to Type-C cable with Power Delivery.
Mount the device
Select the confirmed GoPro or phone adapter.
Choose the mode
Use continuous light or rotation-triggered light.
Confirmed data
Current Triangle Light version
These values apply to the version produced since August 2023.
| Power | 15 V / 3 A, USB-C Power Delivery |
|---|---|
| Built-in battery | None |
| Cable | Type-C to Type-C with Power Delivery / fast charging |
| Modes | Continuous light; light during rotation |
| GoPro | Vertical and horizontal adapters, GoPro screw |
| Phone | Two adapters and a screw adapter |
Older Triangle Light versions follow a separate guide. Do not apply old-version power values without confirming the hardware revision.
In detail

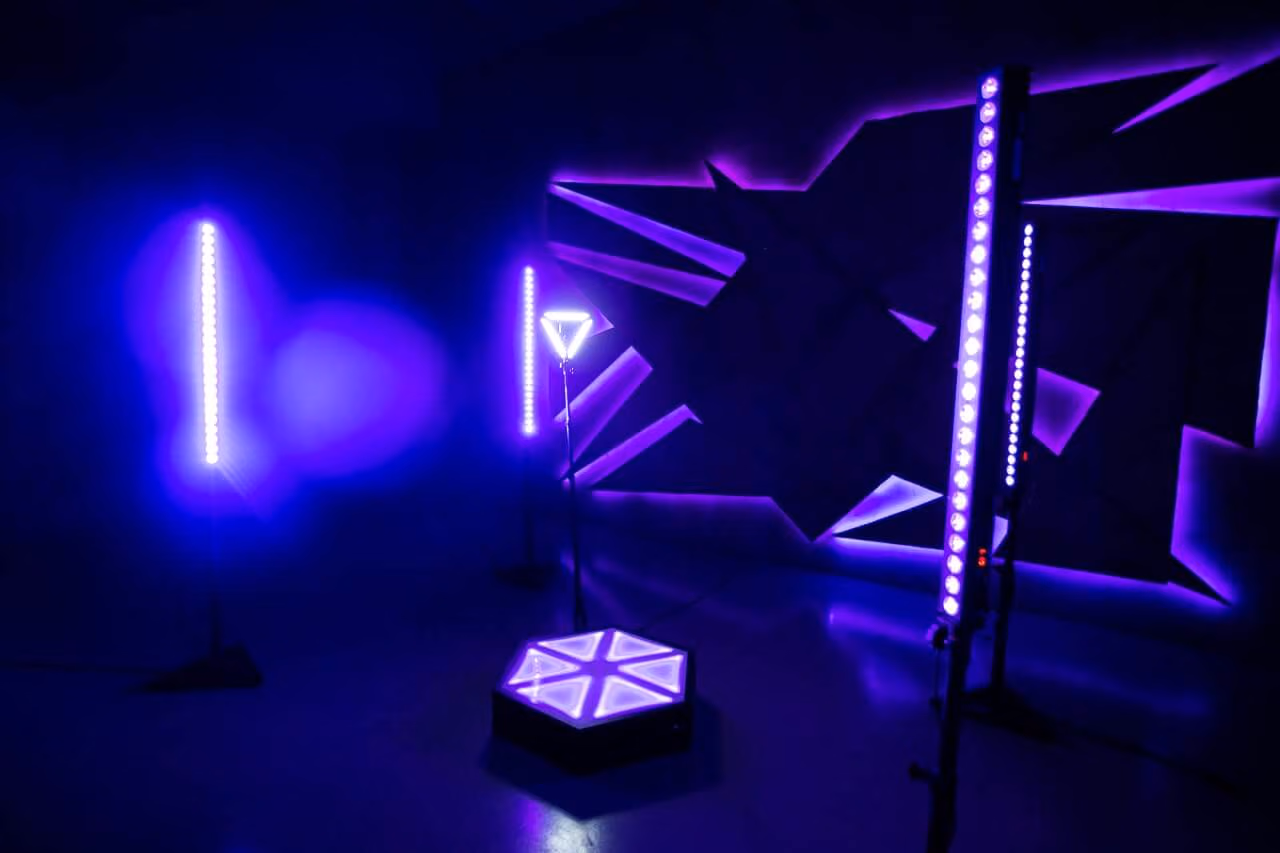

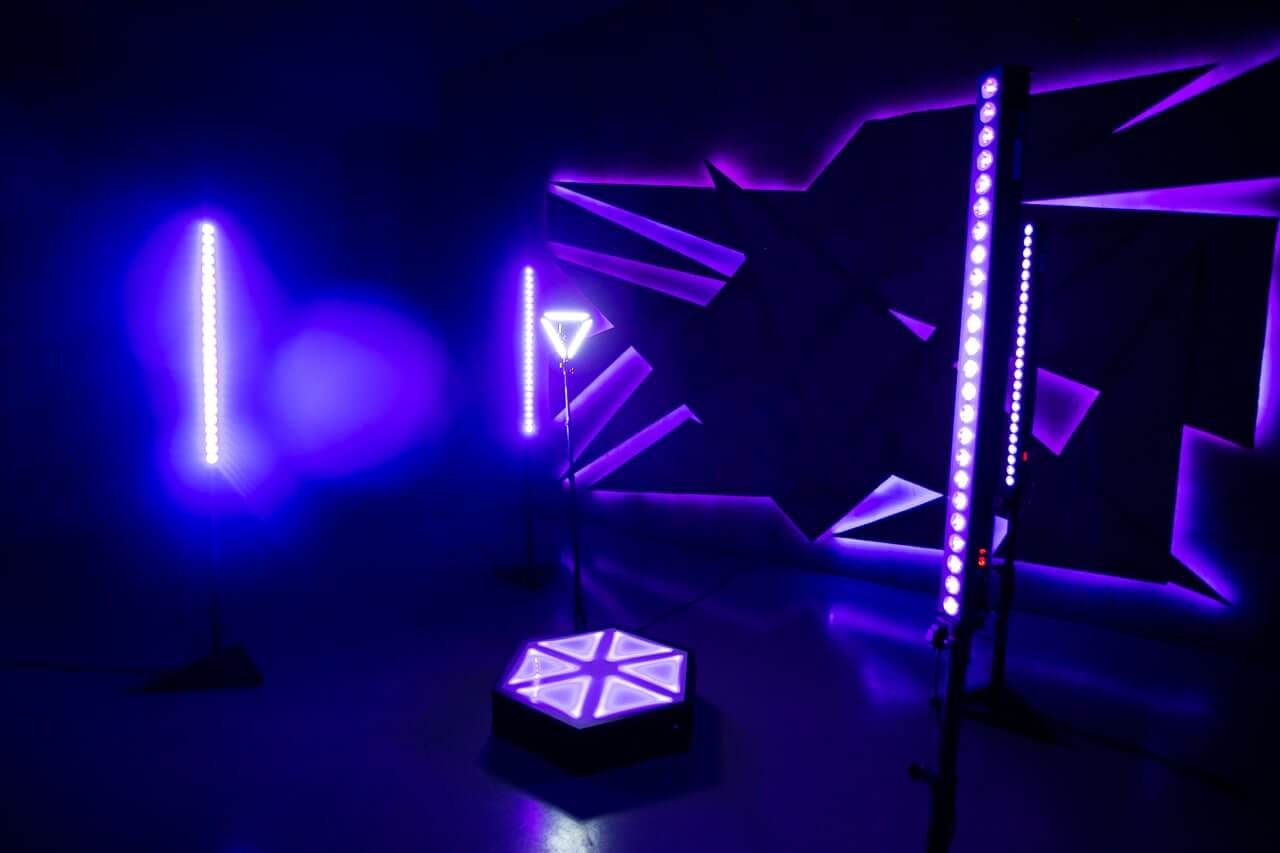

Triangle Light in the scene and on the arm

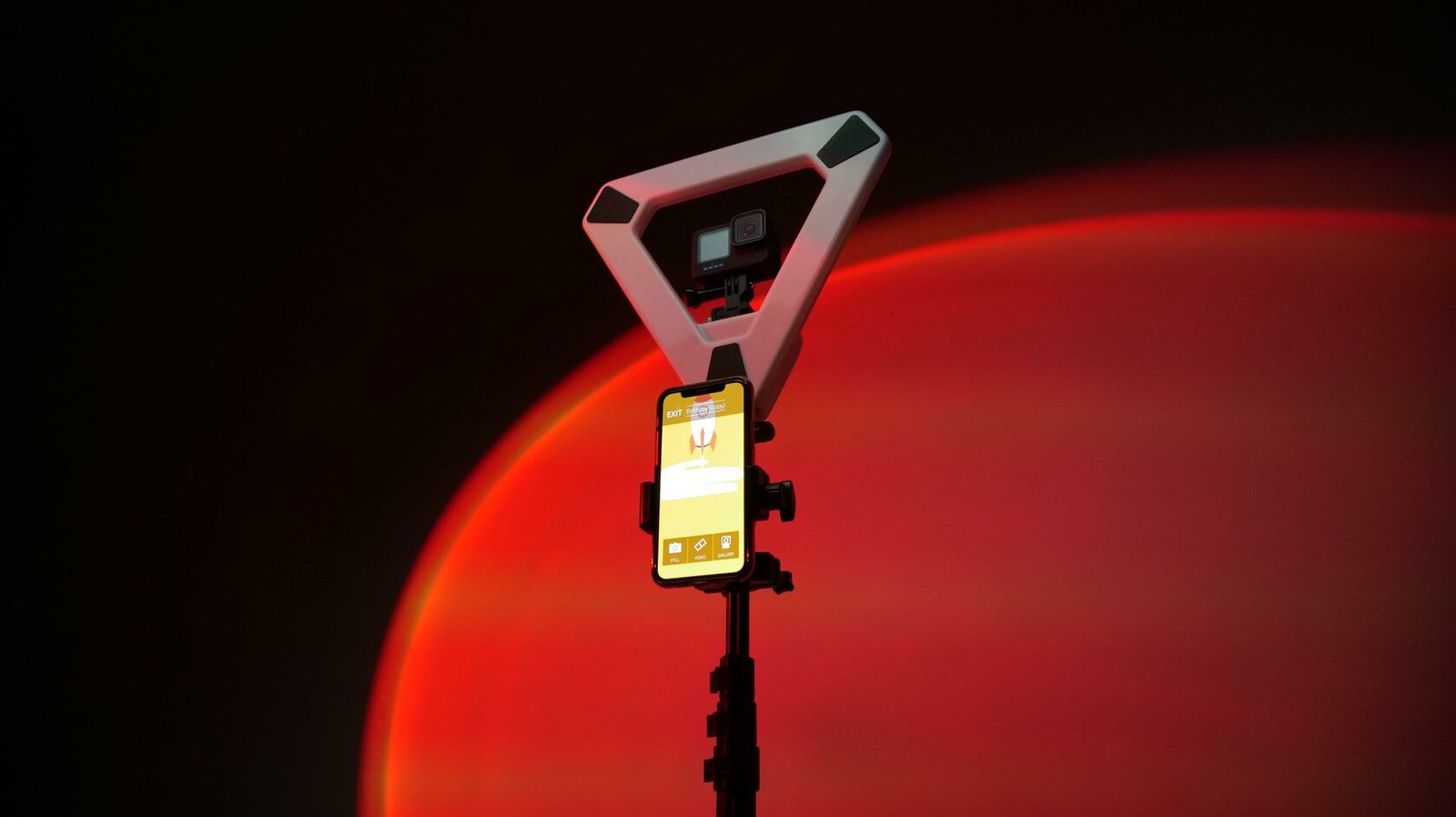

See the lighting module by itself and with the camera and phone mounting points.
FAQ
Before connecting Triangle Light
The first question is the exact hardware revision and correct power source.
Does Triangle Light fit my Spinner version?+
Confirm the mount and Spinner revision before ordering; universal compatibility is not claimed.
Which power bank is required?+
The current version needs a Type-C source with 15 V / 3 A Power Delivery. No specific model or runtime is promised here.
Which modes are available?+
Continuous light and a mode that switches the light on while the platform rotates.
Can I mount a phone?+
Current contents list two phone adapters and a screw adapter. Validate the exact phone with the selected mount.
How does the current version differ from the old one?+
Power and controls differ. This page describes the version produced since August 2023 with a 15 V / 3 A input.
DZEN TECH / Triangle Light
Add light to the Spinner 360 working axis.
Confirm the platform revision, camera or phone mount and correct USB-C PD power source.
